Video Compression (Compression Standard: H.265 / H.264, Channel Capacity: 16-Channel)
IP Camera Support (Max. Resolution: Up to 4K (8MP))
Real-Time Live Display (480fps: 16-Split View (D1/VGA sub-stream or lower), 120fps: Quad-Split View (1080p sub-stream or lower), 30fps: Single-View (Up to 4K main-stream))
Video output (HDMI: Up to 4K @ 30fps, VGA: Up to 1080p @ 60fps, CVBS: NTSC / PAL Standard Definition (SD))
Display Modes (HDMI / VGA: 1 / 4 / 6 / 8 / 9 / 10 / 12 / 13 / 16 Split-view, CVBS: Single-view)
Main Output (HDMI/VGA) | Resolution | ~ 4K2K | |
Display Mode | 1, 4, 6, 8, 9, 10, 13, 16 | ||
Digital Zoom | Linear Zoom | ||
CVBS Output | NTSC/PAL | Single Ch up to D1 | |
Video In | Input | IPC Dual Stream up to 16CH | |
Video Out | HDMI | ~ 4K2K 30 | |
VGA | DSUB(~1080p60) | ||
Composite | CVBS | ||
Audio Output | - | 1 HDMI | |
I/O | USB | USB 2.0 two ports (Mouse, Snap-Shot) | |
Ethernet | 1 RJ45(10/100/1000 Based –T) | ||
CODEC | - | Video : H.265/H.264 Audio : G.711 (A-Law/U-Law) | |
Operating System | - | Embedded Linux | |
IPC Protocol | - | ONVIF | |
Decoding & Display | ~ D1 | ~ 480fps | |
~ 720p | ~ 240fps | ||
~ 1080p | ~ 120fps | ||
~ 4K2K | ~ 30fps | ||
Max. fps/ch | 30 | ||
Max. Resolution | 4K2K | ||
Remote Viewer | PC | Web(Active-X), VMS, macOS, Web | |
Mobile | Android, iOS | ||
Control | - | USB Mouse / Remote Control | |
Capture | - | JPEG Snapshot to USB Thumb Drive | |
Power | - | 12V/1A or higher | |
Operating temperature & humidity | - | 5~40°C / 20~80% RH | |
Dimension (W x D x H) | - | 140x93x36 | |
Weight | - | 250g |

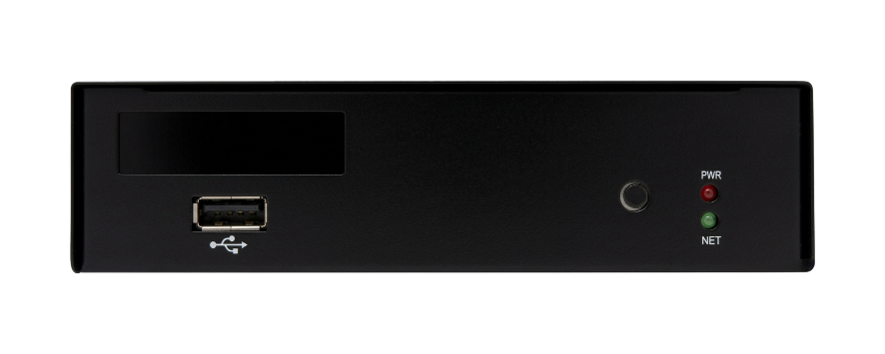

>> Download Brochure: WAV-BC16ND_Brochure.pdf
